Shoulder Stabilizer

(AKA Under Shoulder Details)

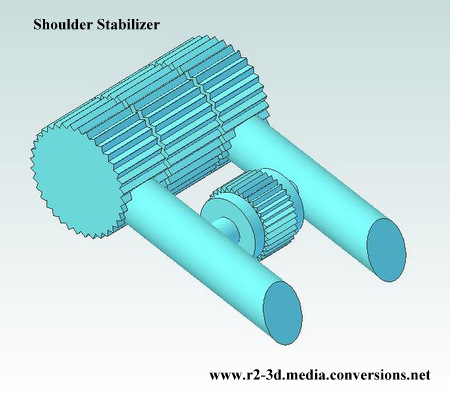

Click on the image to open a 3D .pdf version of the design.

There is no information on either the number of knurls or their depth for this part. If anyone knows what those should be please send me a note at: fpirz (at) media-conversions (dot) net. I've included a copy of the BC drawing in the download for reference. Thanks. - F.Pirz

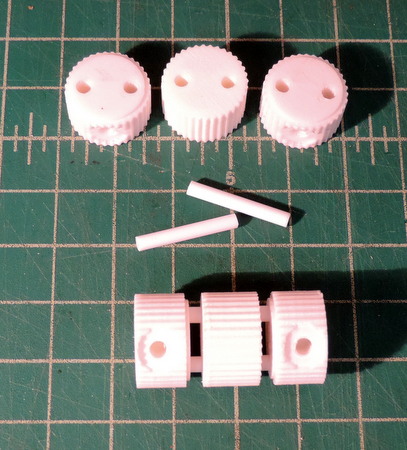

Left: The Stabilizer body is assembled from 3 pieces to preserve the definition of the slots

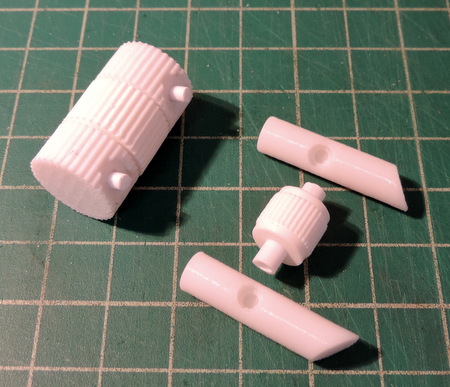

Above: The two stabilizer legs and the 'planet' between them are then added

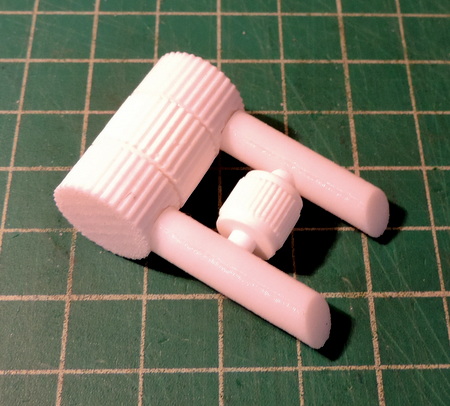

Left: The Shoulder Stabilizer finished assembled


Shoulder Stabilizer is only sold as a finished assembly
Shoulder Stabilizers are sold in sets of 4 - see the Part List
